190° Wide‑Angle Stereo Perception Camera

190° Wide‑Angle Stereo Perception Camera

Name: 190° Wide‑Angle Stereo Perception Camera
Brand: Ufunzai
Price: 299.00 USD
Availability: InStock

$299.00

Tax included.

Available in stock (200)

This stereo perception camera integrates synchronized dual‑eye imaging, depth computation and on‑device AI inference under only 3W typical power consumption. It delivers 190° ultra‑wide‑field synchronized stereo frames, 140° FoV centimeter‑accuracy depth maps, and NPU‑accelerated YOLO detection at 10 fps.

Hardware synchronization between camera and IMU ensures consistent timing. Gigabit Ethernet enables high‑speed parallel output of stereo images, depth frames and AI results, perfectly suited for mobile robots, obstacle‑avoidance navigation and edge‑side smart perception integration.

Limited time offer

Get $20 off when you spend $1,000 or more! Learn more

Product Descriptions

Adopting passive stereo vision architecture, this stereo perception camera features ultra‑low 3W typical power draw, easing power supply and thermal constraints for compact, battery‑powered end‑side hardware.

The dual‑eye sensor outputs synchronized 1080 × 1280 stereo images at 30 fps with a huge 190° field‑of‑view. Raw stereo streams are transmitted over Gigabit Ethernet for stereo matching, depth calculation and further visual algorithm processing.

Its depth engine outputs 544 × 640 depth maps at 15 fps within 140° field‑of‑view with centimeter‑level ranging precision. Depth data supports obstacle avoidance, distance sensing and environmental reconstruction tasks.

Equipped with embedded NPU hardware accelerator, the camera runs YOLO object detection locally at 10 fps. By outputting detection results directly on‑device, it lessens host CPU load and reduces image transmission bandwidth requirements.

Camera and IMU implement hardware‑level synchronization at 200 Hz, providing unified time reference for motion estimation and multi‑sensor fusion. Gigabit Ethernet interface concurrently transfers stereo images, depth frames and AI inference outputs to simplify system integration. Target applications cover mobile robots, unmanned platforms, smart terminals and edge vision equipment. Actual performance is subject to algorithm models and system configurations.

About Brand

UfunzAI is a high-tech enterprise specializing in DIY, Innovation Tools, Engineering and core robotic technologies. Our main focus to make people having more fun in DIY, AI and engineering filed.

Shipping & Rerturns

• Shipping: Orders are processed within 1–2 business days. Standard delivery takes 15 business days depending on your location.
• Returns: You may return or exchange products within 7 days of receiving your order. Items must be in original condition with proof of purchase.
If your item is defective or damaged due to manufacturing issues, we’ll gladly replace it at no additional cost.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Share:

190° Wide‑Angle Stereo Perception Camera

$299.00

Stereo Perception Camera | Passive Stereo Vision with On‑Device AI

Specifications

Typical Power Consumption 3 W
Stereo Image Resolution 1080 × 1280
Stereo Image Frame Rate 30 fps
Stereo Field‑of‑View 190°
544 × 640 Depth Map Resolution
Depth Map Frame Rate 15 fps
Depth Field‑of‑View 140°
Depth Accuracy Centimeter‑level
On‑Device Inference NPU‑accelerated YOLO at 10 fps
Interface & Sync Gigabit Ethernet, 200 Hz Hardware IMU Sync

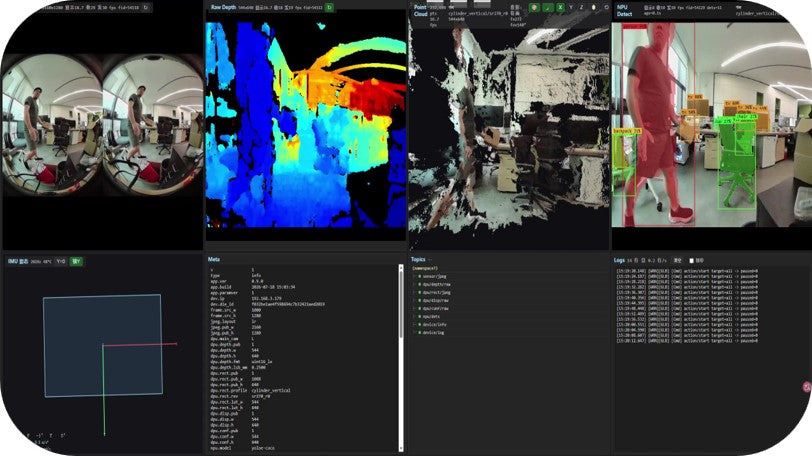

Multi‑Modal Visual Demo: Stereo‑Depth‑AI Output

Ultra‑Wide Synchronized Stereo Image Capture

Point‑Cloud & On‑Device AI Object Detection Result

Key Features

Ultra‑Low 3W Power Consumption

High‑speed parallel transmission for stereo images, depth frames and AI outputs for easy system integration.

190° Synchronized Stereo Imaging

Dual‑sensor hardware‑synchronized 30fps stereo streams for wide‑scene visual algorithm development.

140° Centimeter‑Level Depth Output

Real‑time 15fps depth maps support robot obstacle avoidance, distance measurement and environment modelling.

Embedded NPU On‑Device AI Inference

Local YOLO detection at 10 fps cuts host computing overhead and image transmission bandwidth usage.

Camera‑IMU Hardware Synchronization

200 Hz hardware sync supplies unified timestamp for motion estimation and multi‑sensor fusion.

Gigabit‑Ethernet Multi‑Data Output

High‑speed parallel transmission for stereo images, depth frames and AI outputs for easy system integration.

Discover more in our FAQ

Shoot our team an email & we’ll get back to you ASAP

What are the main application scenarios for this stereo perception camera?

It is designed for mobile robots, unmanned platforms, smart terminals and edge visual equipment for navigation, obstacle avoidance and intelligent object recognition.

What is the difference between stereo FoV and depth FoV?

Stereo image reaches 190° ultra‑wide angle; depth map effective field‑of‑view is 140° with centimeter‑level ranging precision.

Why use hardware‑level IMU synchronization?

Hardware sync unifies sampling timestamps. It provides reliable time base for motion estimation, SLAM and multi‑sensor fusion algorithms.

Does AI object detection run on‑camera or on host hardware?

YOLO inference runs locally on the camera’s built‑in NPU. The camera outputs detection results directly to reduce host‑side computation load.
